This topic explores practical AoIP applications for the Raspberry Pi 5
Up to 12 BIG VOICE .CL!
Low latency application

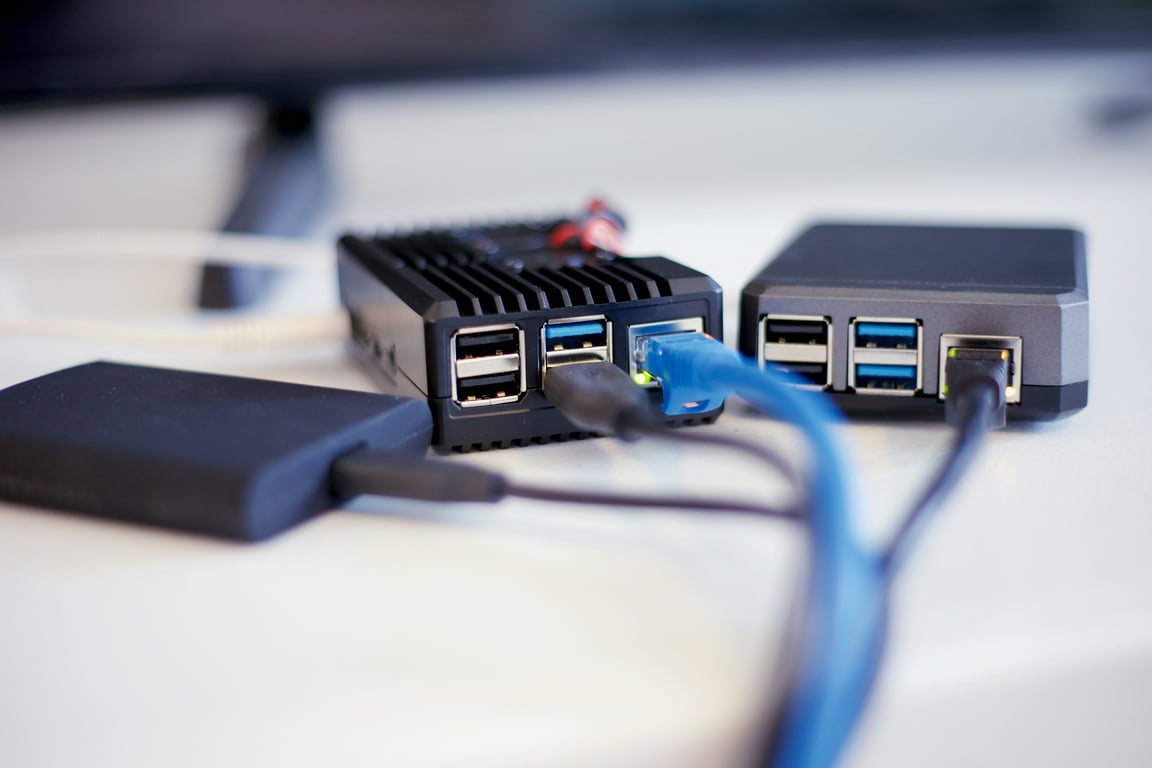

A Raspberry Pi 5 is powerful enough to serve as a major processing hub for voice processing applications. Typically, a Pi can smoothly run up to 12 instances of BIG VOICE .CL with minimal latency. In Live Stream mode (Livewire 12 samples), the total latency (engine + I/O) is just 3.5ms!
Advantages:
- Dominate-it is working across all channels in the same group
- Extremely low latency capability (according to AoIP standard used)
- High channel capacity

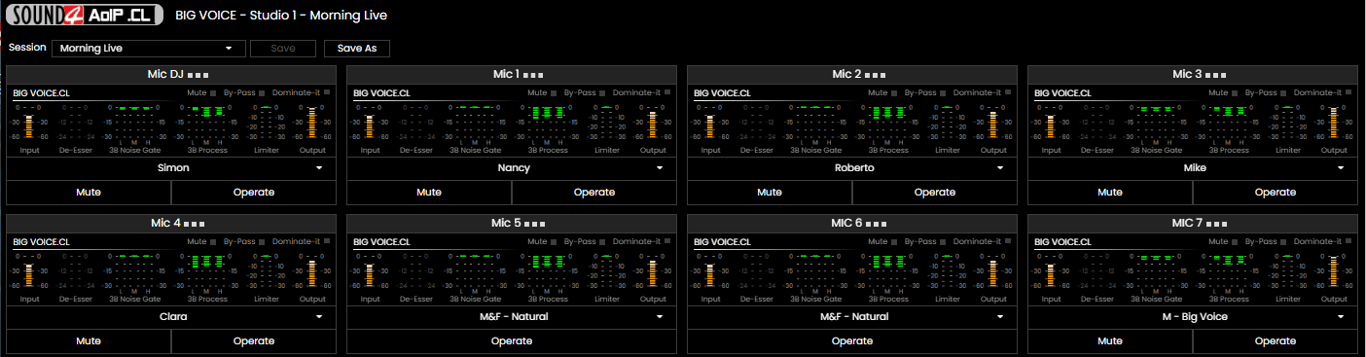

The Live HTML application provides all the tools needed to manage your voice processing hub
Up to 8 BIG VOICE .CL + 1 IMPACT for headphone monitoring
Low latency application
Radio talents naturally want to hear both their broadcast and their voice through their headphones. However, achieving this with the required low latency presents technical challenges that limit available solutions.
Thanks to SOUND4's unique AoIP solution, it's possible to process each mic with BIG VOICE .CL instances, and run an IMPACT .CL in a low-latency profile on the same Raspberry Pi 5 keeping talents happy with their headphone monitoring! the cascade of Voice .CL + IMPACT .CL will feed out ths sound to headphone with
Since IMPACT is our big flagship processor, we recommend running no more than 8 BIG VOICE .CL instances on the same Raspberry Pi 5.
Up to 6 IMPACT .CL
Standard latency application
Without streaming and watermarking, a Raspberry Pi 5 can run up to 6 IMPACT .CL with AoIP I/O.
Up to 5 IMPACT .CL + 6 Streams/ch
Standard latency application
This is the typical application for users wanting to create processing and streaming capabilities with an AoIP input.
Up to 4 IMPACT .CL + 6 Streams/ch + 4 Watermarking
Standard latency application
This is the typical application for users wanting to create processing and streaming capabilities with an AoIP input. Additionally, you can integrate up to 4 Kantar Media watermarking modules into this chain.
Up to 26 x1 .CL
Standard latency application
Without streaming and watermarking, a Raspberry Pi 5 can run up to 26 x1 .CL with AoIP I/O.
Up to 10 x1 .CL + 6 Streams/ch
Standard latency application
This is the typical application for users wanting to create processing and streaming capabilities with an AoIP input.
Up to 8 x1 .CL + 6 Streams/ch + 8 Watermarking
Standard latency application
This is the typical application for users wanting to create processing and streaming capabilities with an AoIP input. Additionally, you can integrate up to 4 Kantar Media watermarking modules into this chain.
