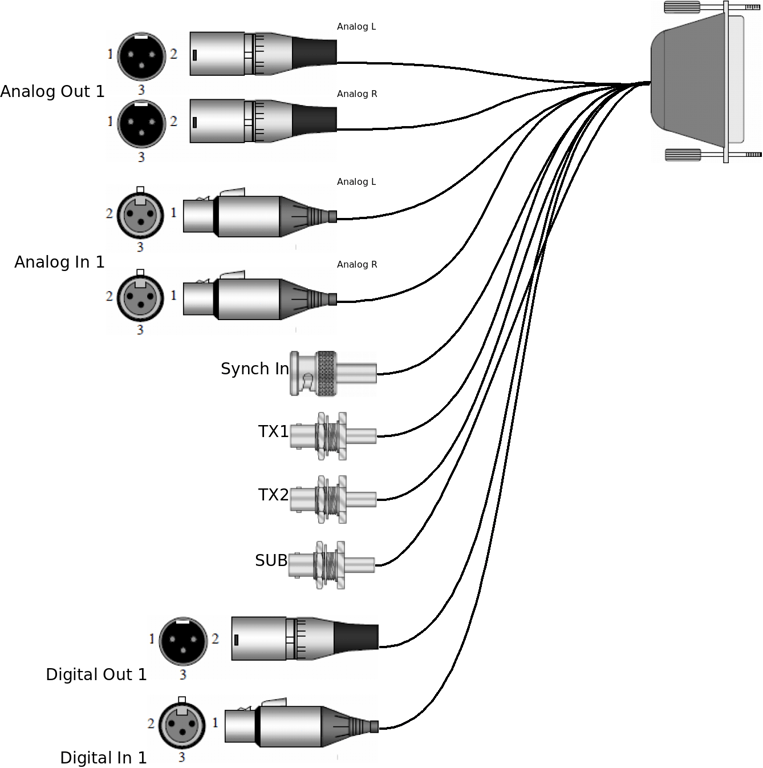

HD-FM Connector Pinout
SUBD HDM62H | Function | Destination | |
PIN | Connector | PIN | |
1 | Analog R OUT (-) | XLR Male | 3 |
2 | Analog L OUT (-) | XLR Male | 3 |
3-6 | Not Connected ! | ||
7 | Analog R IN (-) | XLR Female | 3 |
8 | Analog L IN (-) | XLR Female | 3 |
9-12 | Not Connected ! | ||
13 | TX2 Multiplex (coax) | BNC Female | core |
14 | SUB input (coax) | BNC Female | core |
15 | Digital IN (-) | XLR Female | 3 |
16-17 | Not Connected ! | ||
18 | Digital OUT (-) | XLR Male | 3 |
19-20 | Not Connected ! | ||
21 | Synch IN | BNC Male | core |
22-42 | GND common | All XLR | 1 |
All BNC | shield | ||
43 | Analog R OUT (+) | XLR Male | 2 |
44 | Analog L OUT (+) | XLR Male | 2 |
45-48 | Not Connected ! | ||
49 | Analog R IN (+) | XLR Female | 2 |
50 | Analog L IN (+) | XLR Female | 2 |
51-54 | Not Connected ! | ||
55 | TX1 Multiplex (coax) | BNC Female | core |
56 | Not Connected ! | ||
57 | Digital IN (+) | XLR Female | 2 |
58-59 | Not Connected ! | ||
60 | Digital OUT (+) | XLR Male | 2 |
61-62 | Not Connected ! |

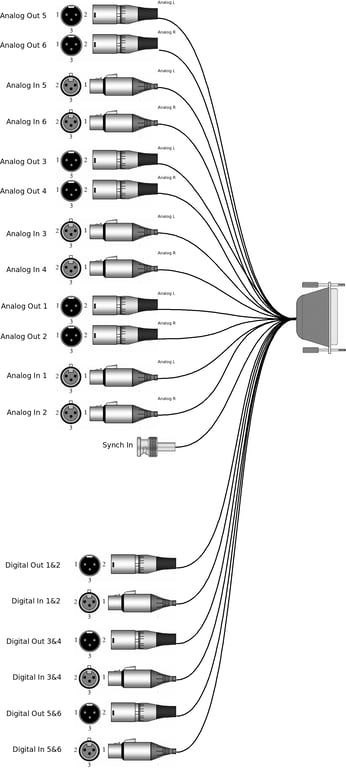

Voice AD Connector Pinout
SUBD HDM62H | Function | Destination | |
PIN | Connector | PIN | |
1 | Analog 1 OUT (-) | XLR Male | 3 |
2 | Analog 2 OUT (-) | XLR Male | 3 |
3 | Analog 3 OUT (-) | XLR Male | 3 |
4 | Analog 4 OUT (-) | XLR Male | 3 |
5 | Analog 5 OUT (-) | XLR Male | 3 |
6 | Analog 6 OUT (-) | XLR Male | 3 |
7 | Analog 1 IN (-) | XLR Female | 3 |
8 | Analog 2 IN (-) | XLR Female | 3 |
9 | Analog 3 IN (-) | XLR Female | 3 |
10 | Analog 4 IN (-) | XLR Female | 3 |
11 | Analog 5 IN (-) | XLR Female | 3 |
12 | Analog 6 IN (-) | XLR Female | 3 |
13-14 | Not Connected ! | ||
15 | Digital IN 1/2 (-) | XLR Female | 3 |
16 | Digital IN 3/4 (-) | XLR Female | 3 |
17 | Digital IN 5/6 (-) | XLR Female | 3 |
18 | Digital OUT 1/2 (-) | XLR Male | 3 |
19 | Digital OUT 3/4 (-) | XLR Male | 3 |
20 | Digital OUT 5/6 (-) | XLR Male | 3 |
21 | Synch IN | BNC Male | core |
22-42 | GND common | All XLR | 1 |
All BNC | shield | ||
43 | Analog 1 OUT (+) | XLR Male | 2 |
44 | Analog 2 OUT (+) | XLR Male | 2 |
45 | Analog 3 OUT (+) | XLR Male | 2 |
46 | Analog 4 OUT (+) | XLR Male | 2 |
47 | Analog 5 OUT (+) | XLR Male | 2 |
48 | Analog 6 OUT (+) | XLR Male | 2 |
49 | Analog 1 IN (+) | XLR Female | 2 |
50 | Analog 2 IN (+) | XLR Female | 2 |
51 | Analog 3 IN (+) | XLR Female | 2 |
52 | Analog 4 IN (+) | XLR Female | 2 |
53 | Analog 5 IN (+) | XLR Female | 2 |
54 | Analog 6 IN (+) | XLR Female | 2 |
55-56 | Not Connected ! | ||
57 | Digital 1/2 IN (+) | XLR Female | 2 |
58 | Digital 3/4 IN (+) | XLR Female | 2 |
59 | Digital 5/6 IN (+) | XLR Female | 2 |
60 | Digital 1/2 OUT (+) | XLR Male | 2 |
61 | Digital 3/4 OUT (+) | XLR Male | 2 |
62 | Digital 5/6 OUT (+) | XLR Male | 2 |
