Note: The PCI product line was discontinued in 2010 and replaced by PCIe models.

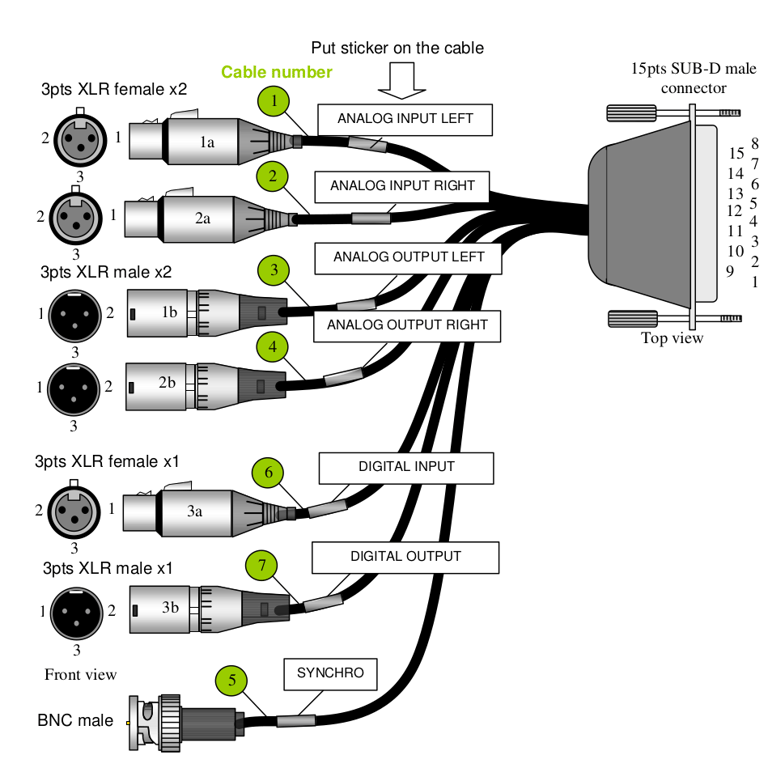

HD-FM Connector Pinout
SUBD M15 | Function | Destination | ㅤ |
PIN | ㅤ | Connector | PIN |
1 | Analog L IN (-) | XLR Female | 3 |
2 | Analog R IN (-) | XLR Female | 3 |
3 | Analog L OUT (-) | XLR Male | 3 |
4 | Analog R OUT (-) | XLR Male | 3 |
5 | GND common | All XLR | 1 |
ㅤ | ㅤ | All BNC | shield |
6 | Synch IN | BNC Male | core |
7 | Digital IN (-) | XLR Female | 3 |
8 | Digital OUT (-) | XLR Male | 3 |
9 | Analog L IN (+) | XLR Female | 2 |
10 | Analog R IN (+) | XLR Female | 2 |
11 | Analog L OUT (+) | XLR Male | 2 |
12 | Analog R OUT (+) | XLR Male | 2 |
13 | GND common | All XLR | 1 |
ㅤ | ㅤ | All BNC | shield |
14 | Digital IN (+) | XLR Female | 2 |
15 | Digital OUT (+) | XLR Male | 2 |
